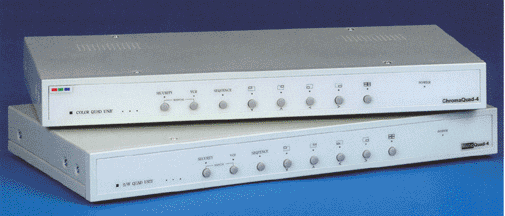

CROMAQUARD-4
HIGH-RESOLUTION
QUARD VIDEO PROCESOR
This
4-input color quard video processor delivers very high
resolution, 1024x512 real time. It features: On-screen
display,
S-VHS VCR input and Output, real time refresh and full
alarm operations.
Includes a video flicker filter and independent
adjustment.
|
| |
| Adjustable
Alarm Duration |
Yes
|
| Alarm
Control Output |
NO
and NC contacts:1A@DC24V Max
|
| Alarm
Sensor Input |
Contact
closure activated alarm input x 4
|
| Alarm
Sensor Input type |
Normal
Open / Normal Close
|
| Alarm
Types |
Video
loss and Alarm sensor contact detection
|
| Bright,
Contrast, Color and Hue Adjustment |
Independent
for each camera
|
| Buzzer
ON/OFF Switch |
Yes
|
| Camera
Dwell Time |
Yes
|
| Camera
Terminations |
75ohm/Hi-impedance
Selectable for each camera
|
| Camera
Title |
10
Characters for each camera
|
| Camera
Type |
Color
|
| Digital
Memory |
1024
X 512
|
| Dimension
(H,W,D) |
1.75"
X 17" X 7.9"
|
| Number
of Colors |
16.7
Million Colors
|
| Operating
Temperature |
32F~122F
|
| Power
Adapter |
120~230V
AC Input, DC12V Output, UL, CSA&CE Approved
|
| Power
Consumption |
DC12V
/ 8W
|
| Rack
Mountable |
EIA
19" wide standard mounting rack
|
| Refresh
rate |
30(25)/60(50)Selectable
|
| Remote
Control / RS-232C |
Maximum
distance: 1000ft
|
| Security
Lock |
Yes
|
| S-VHS
Y/C Input |
Y:1Vp-p,75ohm
C:0.286Vp-p,75ohm
|
| Time/Date |
Built-in
Clock With Back-up battery
|
| VCR
Play Back Input |
1Vp-p,
75ohm
|
| Video
Filter |
Yes
|
| Video
Format |
NTSC/PAL
x 4
|
| Video
Gain Adjustment |
Automatic
|
| Video
Output |
Video
out to monitor x 1, 1Vp-p,75ohm Termination
Quard Video Out to VCR x 1, 1Vp-p,75ohm Termination
Video Input Loop through x 4, 1Vp-p,75ohm Termination
|
| Weight |
5.5lbs
|
|
