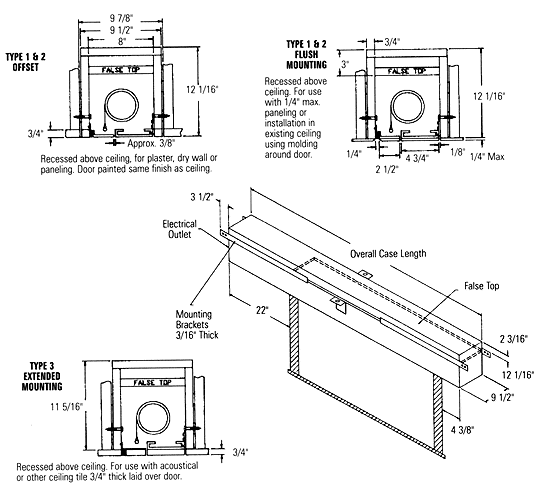

Da-Lite > Product Information > Specifications > Executive Electrol > CAD Drawing   Executive Electrol: Specifications Dimensions Sizes H x W In. Cm Overall length of case + Cm Approx. shipping wt. lbs. Kg * 50" x 50" 127 x 127 76 3/8" 194 144 65.32 * 60" x 60" 152 x 152 86 3/8" 220 154 69.85 * 70" x 70" 178 x 178 96 3/8" 245 164 74.39 * 84" x 84" 213 x 213 110 3/8" 280 184 83.46 * 6' x 8' 183 x 244 122 3/8" 310 209 94.80 * 8' x 8' 244 x 244 122 3/8" 310 211 95.71 * 7' x 9' 213 x 274 134 3/8" 342 234 106.14 * 9' x 9' 274 x 274 134 3/8" 342 237 107.50 * 8' x 10' 244 x 305 146 3/8" 372 260 117.94 * 10' x 10' 305 x 305 146 3/8" 372 263 119.30 * 9' x 12' 274 x 366 170 3.8" 433 311 141.07 12' x 12' 366 x 366 170 3/8" 433 316 143.34 10' 6" x 14' 320 x 427 194 3/8" 494 403 182.80 14' x 14' 427 x 427 194 3/8" 494 410 185.98 12' x 16' 366 x 488 218 3/8" 555 459 208.20 16' x 16' 488 x 488 218 3/8" 555 469 212.74   *Add 7" to overall length for mounting brackets. Case width 9-1/2", case height 12-1/16" Overall case length dimensions +/- 1/4" Specifications subject to change without notice.     For pricing information, please contact Media Fabricators, Inc. via e-mail at [email protected] or via telephone at 323 937 3344.
