 DIGITAL VIDEO RECORDER
|
|
FireWire/IEEE-1394 DV input for
direct digital recording from your Digital camcorder.Connect the
DV input to your non-linear editing system for quick and easy
disc mastering of your edited programs. |
Unit Dimensions/Weight
Width: 16.1 inches, 410 mm,
Depth: 11.8 inches, 300 mm
Height: 3.6 inches, 92 mm,
Net Weight: 9.3 lbs, 4.2
Kgs |
KEY FEATURES
|
|
One-button recording – easier to use than
a VCR.Records 20–80 minutes on any CDR or CDRW disc.Over 400
lines video resolution (CD-DVD model)Composite Video,
S-Video, Stereo Audio inputs and outputs.Y.U.V. / R.G.B. (switchable)
component video output for video projectors. Built-in color
processor allows adjustment of Color Saturation, Hue2,
Brightness, Contrast, and Sharpness. NSimple editing on CDRW
discs with “erase last track” function. Wireless remote
control included. Playback features: repeat disc (default),
repeat track, direct access by track or time, programmed
playback, frame advance, FF/FR up to 16X speed. All metal
construction: stackable, rackable. User-upgradable firmware.
FireWire/IEEE-1394 DV input for direct digital recording
from your Digital camcorder. Connect the DV input to your
non-linear editing system for quick and easy disc mastering
of your edited programs.
Video Tape Recording was so 20th Century… Datavideo makes
affordable Video Disc recording available today!
|
|
SPECIFICATIONS
|
|
Recording Formats
CD-DVD MPEG-2 @ 5.0Mb/sec. Bit rate
DVD-Photo MPEG-2 @ 2.4Mb/sec. Bit rate
SVCD MPEG-2 @ 2.4Mb/sec. Bit rate
HQ-VCD MPEG-1 @ 2.4Mb/sec. Bit rate
VCD MPEG-1 @ 1.2Mb/sec. Bit rate
Video Formats
CCIR601 NTSC or PAL machines
NTSC
8 CD-DVD - 704 x 480 @ 30 fps
DVD-Photo - 704 x 480 @ 30 fps
SVCD - 352 x 480 @ 30 fps
HQ-VCD - 352 x 240 @ 30 fps
VCD - 352 x 240 @ 30 fps
PAL
CD-DVD 704 x 576 @ 25 fps
DVD-Photo 704 x 576 @ 25 fps
SVCD 352 x 576 @ 25 fps
HQ-VCD 352 x 288 @ 25 fps
VCD 352 x 288 @ 25 fps
Digital Audio Input
S/PDIF 44.1 KHz,16 bit CD quality
Audio Inputs & Outputs
Stereo RCA 20 HZ – 20 KHz
44.1 KHz audio sampling rate,
16 bit CD Quality
Video Inputs
Y/C (S-Video) mini DIN
Composite (RCA)
Optional DV
(IEEE 1394 / I-Link)
4-pin connector. Conforms to DV 25
4:1:1 NTSC or 4:2:0
PAL @ 25Mb/sec.
Bit rate
Video Outputs
Y/C (S-Video)
mini DIN
Composite (RCA)
Y.U.V.
Sony Betacam BNC
Mastushita M2 BNC
SMTPE BNC
RGB BNC
Microphone Inputs Two dynamic microphone inputs, 600 ohm
General
Power Supply 115-230 VAC, 50/60Hz
Selectable
Accessories
Remote Controller with 2 x AAA Batteries
Datavideo CD-R/W Disc
S (Y/C) Cable
Composite (RCA) Cable
Power Cord
4-pin to 4-pin IEEE/1394 DV Cable
(VDR-3000DV only)
User’s Manual
|
|
If you are not making feature movies, why pay for a feature-movie system?
|
DVD
recording seems attractive at first,with 60-120 minute recording
time and studio-quality pictures. But consider the costs:If your
programs are less than 20 minutes long, they'll fit on one CD-DVD.You
spend $9.50 more than you should every time you make a disc.
Make ten discs and spend an extra $95 dollars.
The Datavideo VDR-3000 offers the same razor-sharp pictures for
shorter programs at a fraction of the cost, or longer recording
times in four different recording qualities.
All modes offer CD-quality stereo sound. |
|
Recording Mode
|
Recording Time (700MB
discs)
|
|
CD-DVD (best quality)
|
20
|
|
SVCD
|
40
|
|
HQ-VCD
|
40
|
|
VCD
|
80
|
|

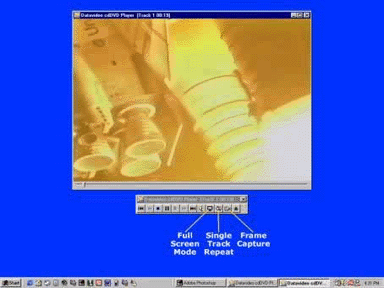

Every disc recorded on the VDR-3000 includes a PC-Auto Play feature
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
1.
Pentium III or equivalent, Windows 98/NT/2000/ME/XT, DirectX 8.0
recommended.
Macintosh and Linux playback are possible with the appropriate
software.
2. Hue adjustment for NTSC
only.
3. Actual recording times
are approximately 10 seconds less than listed.
4. Pentium III or
equivalent, Windows 98/NT/2000/ME/XT, DirectX 8.0 recommended.
Macintosh and Linux playback are possible with the appropriate
software.
5. The Terrapin recorder
offers the lowest-quality VCD mode only.
6. VDR-3000DV model.
7. Or use any computer with
a $99 CDRW drive.
Windows, NT, ME, XP, Power Point, & DirectX are trademarks of
Microsoft.
Pentium is a trademark of Intel.8The D1 resolution of video on a
PC display is 720 x 480 but only 704 x 480 on a TV display. A
black gap will appear on the left side of the picture on
a PC display if the video resolution is recorded at 704 x 480.
|
CP - 100PRO Player Video CD Presenter
|
|
Industrial-strength, compact size,
low-cost stand-alone Video Disk Player provides Video, S-Video,
and component video outputs plus stereo audio. Auto play on
power-up. Endless disc repeat is standard. Wireless remote
included. 12V operation possible. |
Unit Dimensions/Weight
Width: 7.5 inches, 190.5 mm,
Depth: 12.8 inches, 317.5 mm
Height: 2.5 inches, 63.5
mm, Net Weight: 5.7
lbs/144.78 Kgs
|
|
